Durability in the Field: A Closer Look at Pressure Sensor Performance

From drilling sites to fracturing operations, the equipment we rely on faces a constant test of its endurance. For pressure monitoring systems, these conditions present a significant hurdle; common failures not only halt productivity but can also create safety concerns. At CSSPM Sensor, we address these hurdles directly through engineering focused on resilience and accuracy. Our approach ensures that critical data remains available, supporting both operational continuity and worksite safety. This article examines the specific advantages of a robust hammer union pressure transmitter and its role in maintaining reliability.

Confronting Common Pressure Sensor Challenges

The operational environment for an oil and gas pressure sensor is exceptionally demanding. Vibration from heavy machinery can loosen internal components and fracture electrical connections, leading to signal drift or complete failure. Exposure to corrosive chemicals, such as those used in acidizing and cementing, can degrade sensor housings and seals. Furthermore, extreme pressure spikes and temperature fluctuations test the fundamental integrity of any measuring device. These factors collectively contribute to downtime, requiring frequent replacements and recalibrations that impact the overall efficiency and cost-effectiveness of field operations.

Engineering for Resilience: The PPM-T293A Design

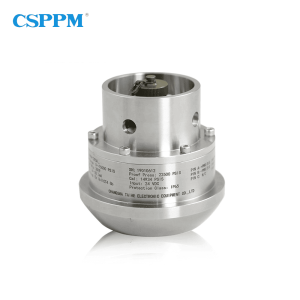

To meet these challenges, we developed the PPM-T293A 1502 hammer union pressure sensor. This unit is built specifically for the rigors of oilfield duties. It features 1502 hammer union fittings (1-1/2″ NPT), a design chosen for its secure connection and widespread use in high-pressure systems, which minimizes the risk of leaks under vibration. The device is rated for pressures up to 20,000 psi, confirming its capability in the most strenuous hydraulic applications. At its core, the sensor delivers a stable 4–20 mA output signal, a standard known for its noise immunity over long distances, ensuring the pressure data received at the control unit is both precise and reliable.

Practical Applications in Oil and Gas Operations

The true value of a durable hammer union pressure transmitter is realized in its daily use across various field applications. During drilling, the PPM-T293A provides essential real-time pressure data from the mud pumps and blowout preventers. In fracturing operations, it monitors critical high-pressure lines, helping to ensure parameters are maintained for both effectiveness and safety. The sensor’s design also makes it suitable for acidizing and cementing processes, where its resistance to harsh chemicals helps maintain accuracy and longevity. This versatility makes it a single, reliable solution for multiple points in a complex operation.

Robust sensor technology is a fundamental component of modern oil and gas extraction. By focusing on the specific failure points encountered in harsh environments, our engineering priorities directly support operational uptime and safety. The PPM-T293A oil and gas pressure sensor exemplifies this philosophy, offering a specialized tool designed to deliver consistent performance where it is needed most. For teams looking to enhance the reliability of their pressure monitoring, this hammer union pressure sensor provides a concrete solution built for the demands of the field.
