Product Introduction：
The PPM-T155A micro differential pressure sensors use micromechanical piezoresistive sensor technology, all stainless steel structure design, small size, light weight, easy installation, good anti-vibration performance, using single-chip intelligent compensation, stable and reliable performance.The product adjusts zero and full externally. Suitable for differential pressure measurement of various gas, liquid micro-range and low-medium range.
Applications :
PPM-T155A micro differential pressure transmitters can be widely used in pipelines in petroleum, chemical, hydrology, power stations, water supply and drainage projects, boiler flue gas, wine making, glass manufacturing, etc.
Technical Parameters :
| Measured medium: | gas, liquid and steam |
| Pressure type: | Differential pressure |
| Differential pressure measurement range: | 0 ～ 25Pa ～ 5kPa ～ 10kPa..1MPa |
| Static pressure: | 600% full scale |
| Allowable overvoltage in forward direction: | 200% FS |
| Allowable overvoltage in negative direction: | 100% FS |
| Power supply: | 10-32VDC |
| Pressure output signal: | 4-20mA, 0-5VDC, 1-5VDC, 0-10VDC can be selected |
| Non-linearity: | 0.2% |
| Repeatability: | 0.2% |

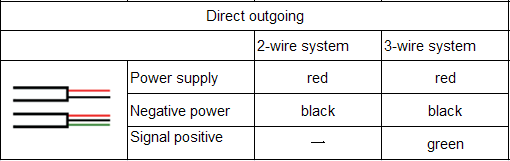

Definition of wiring:
Dimensions in mm :
