Steam Pressure Range/Range Selection Tips and Safety Margin Setting

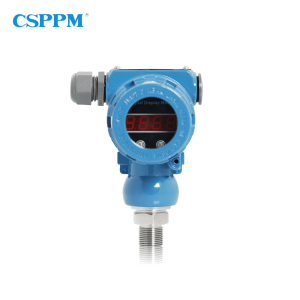

CSSPM Sensor specializes in advanced pressure measurement solutions, including the PPM-T230E Explosion-proof Intrinsically Safe Pressure Transmitter. Designed for hazardous environments, the PPM-T230E combines cutting-edge MEMS technology with precision processing to deliver reliable, high-accuracy measurements. It supports a variety of signal outputs and pressure interfaces, making it ideal for demanding industrial applications that require accurate pressure transmitter calibration and robust performance under extreme conditions.

How to Estimate Range Based on Operating Conditions

Selecting the appropriate high pressure steam pressure range is critical for ensuring accurate measurements and system safety. The estimation process begins with understanding the operating pressure conditions—both normal and transient. It’s essential to analyze the maximum expected pressure along with fluctuations and spikes typical to steam systems. Proper range selection avoids sensor saturation and ensures the pressure transmitter calibration remains valid over the expected operating envelope. Considering the environmental conditions such as temperature and potential corrosive elements also affects range estimation, as these factors influence sensor stability and accuracy.

Range Margin and Safety Margin

When choosing the high pressure steam pressure range, incorporating a margin above the maximum expected pressure is a best practice. This range margin accounts for unexpected pressure surges, preventing sensor overload. Additionally, a safety margin ensures operational reliability and protects equipment from damage. For steam systems, these margins often range from 10% to 30%, depending on the variability and criticality of the process. This margin choice should also be revisited during periodic pressure transmitter calibration to maintain measurement integrity and adapt to process changes.

Multi-Point Calibration/Linearization

Accurate pressure transmitter calibration is essential to maintain sensor performance across the full high pressure steam pressure range. Multi-point calibration involves checking the sensor output at several points within the selected range to detect and correct nonlinearities. Linearization further improves accuracy by compensating for any deviations from the ideal sensor response curve. This process is crucial when dealing with high pressure steam, where precise pressure readings impact system control and safety. Regular calibration ensures that the transmitter’s output remains stable and reliable over time, even in demanding environments.

Conclusion

Selecting the correct high pressure steam pressure range and implementing proper range and safety margins are fundamental to maintaining system accuracy and safety. Complementing this with rigorous pressure transmitter calibration, including multi-point calibration and linearization, ensures long-term reliability. CSSPM Sensor’s PPM-T230E Explosion-proof Intrinsically Safe Pressure Transmitter is engineered to meet these demands, delivering stable and precise measurements even in extreme industrial environments. By integrating advanced technology and robust design, CSSPM Sensor supports efficient and safe steam pressure management.
